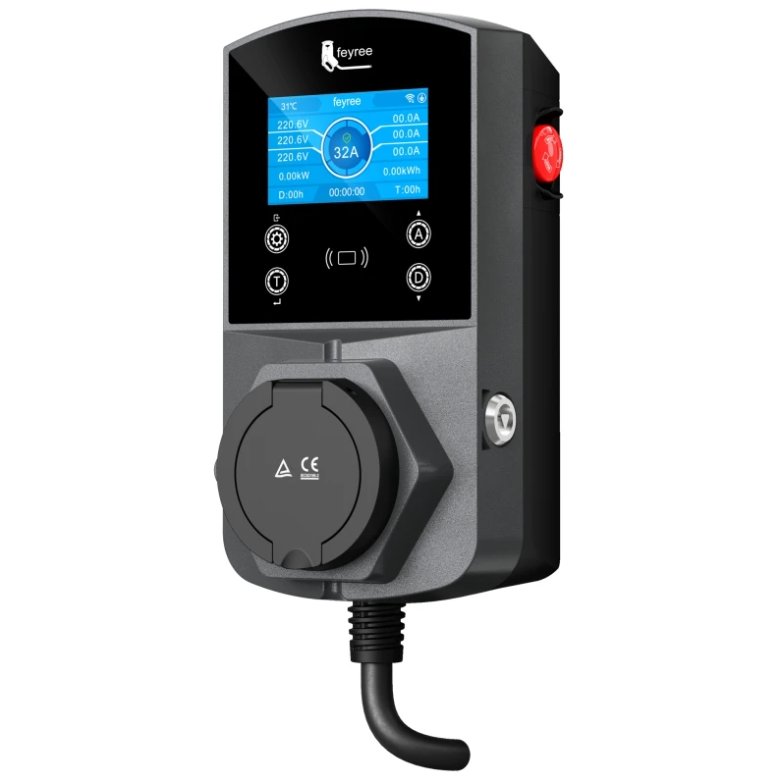

feyree Draco EV-PRO Series Smart EVSE: 22KW 32A Universal Wallbox - Supports 1/3-Phase & All-Standard Plugs

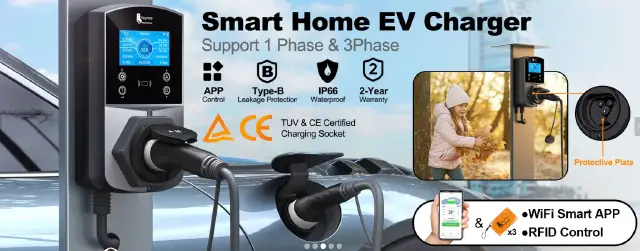

Smart Home EV Charger: Safe and Reliable
This wall-box charging station is designed as a comprehensive, high-security home energy solution, backed by rigorous testing and long-term support.
-
Versatile Connectivity & Control: Supports multiple interaction methods including Wi-Fi/Bluetooth, APP Control, and RFID Card access for secure and convenient operation.
- Advanced Safety Protection: Integrated with Smart Chips and Type-B Leakage Protection to ensure high-level electrical safety during every session.
-
Industrial Durability: Features an IP66 Waterproof rating, making it highly resistant to dust and high-pressure water jets for reliable outdoor or indoor use.
- Certified Quality Assurance: The device carries the CE Certification and has undergone strict pre-shipment inspections, including aging tests and fault detection.
-
Comprehensive Service Support: Comes with a 2-Year Warranty, Life Time Support, and 24/7 Online Support to ensure peace of mind for the user.
Technical Specifications: Professional Grade Charging
This premium wall-box unit offers high-performance electrical specifications designed for both residential and commercial installation.
- Universal Charging Standards: Compatible with all major global interfaces, including Type 2, Type 1, GB/T, and TS-NACS.
-
High-Visibility Interface: Features a large 4.3-inch color screen that displays real-time charging status, energy data, and system diagnostics.
- Flexible Power Management: Supports a maximum output of 32A, with adjustable current settings ranging from 8A to 32A (including 10A, 13A, 16A, 20A, and 25A) to match your home's capacity.
- Phase Versatility: Engineered to support both 1 Phase and 3 Phase electrical systems, offering scalability for different vehicle requirements.
-
Extreme Environment Resilience: Rated IP66 for superior dust and water protection, with a wide operating temperature range from -30°C to +50°C.
- Advanced Leakage Protection: Equipped with AC30mA + DC6mA leakage protection to ensure the highest level of personal and vehicle safety.

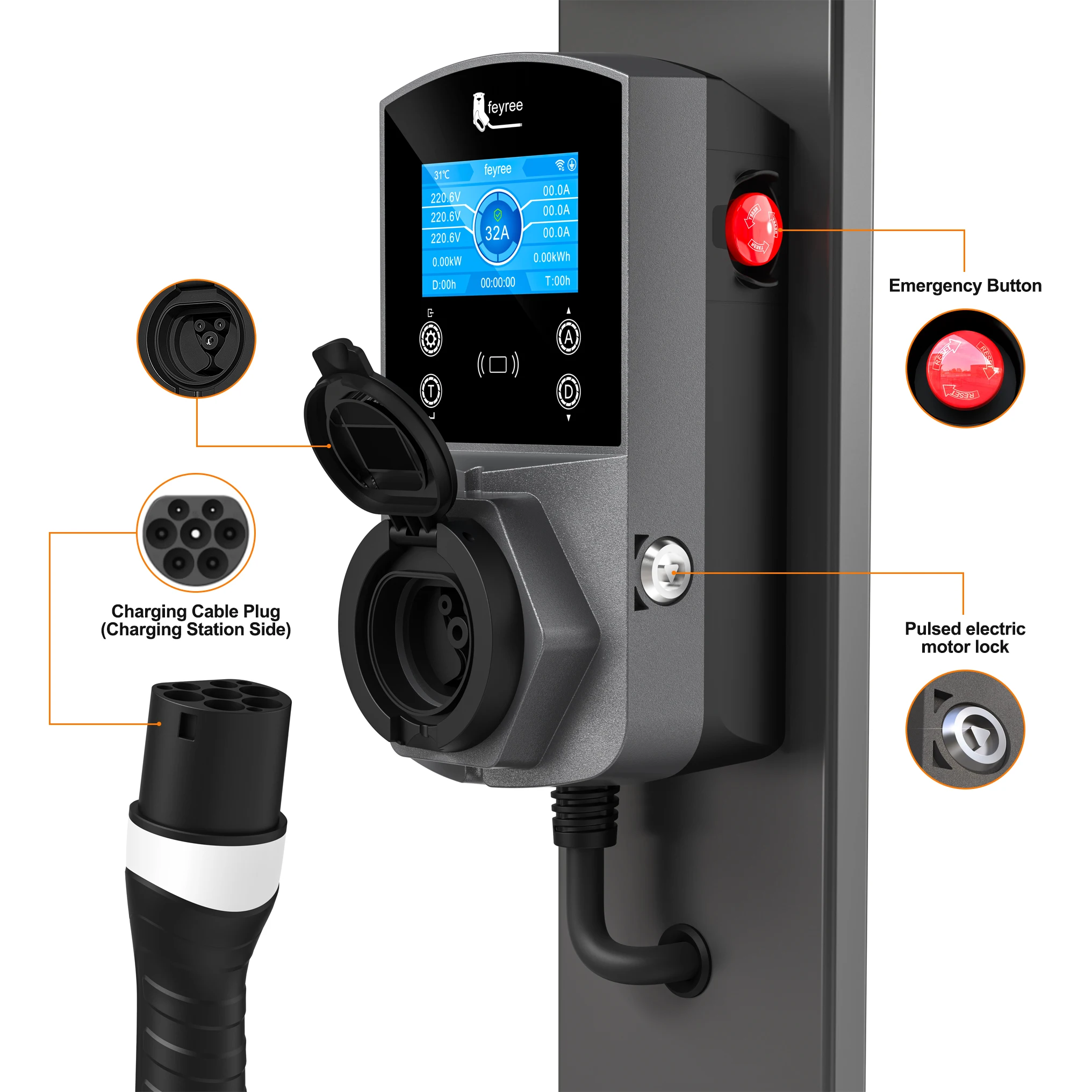

Precision Hardware & Advanced Safety Engineering
This wall-box charger features a sophisticated internal architecture designed for superior heat dissipation, security, and user safety.
- Motor Pulsed Electronic Lock: Utilizes advanced motor pulsed electronic locks to secure the charging connection, providing a more reliable locking mechanism compared to standard hardware.
- Enhanced Heat Dissipation: The internal structure is engineered to dissipate heat more effectively, which significantly extends the overall service life of the wall-box.
- Emergency Safety Control: Equipped with a prominent, easy-to-access Emergency Stop button on the side for immediate power cut-off in critical situations.
- Certified Charging Interface: Features a TUV & CE Certified charging socket, ensuring the hardware meets the highest international safety and quality standards.
- Interactive Display: Integrates a large 4.3 Inch Screen that provides clear visibility for system data and charging progress.
Child-Safe Design: Advanced Electric Shock Protection
This wall-box station is engineered with specialized safety barriers to ensure maximum protection for families and children in residential environments.
- Integrated Protective Plate: The charging socket is equipped with an internal protective plate that covers the metal jacks of live wires.
- Electric Shock Prevention: This physical barrier is specifically designed to prevent children or users from accidental contact with live electrical components.
- Inactive Top Jacks: To further enhance safety, the three exposed metal jacks located on the top of the interface carry no electricity.
- Outdoor Family-Friendly Use: The robust safety engineering allows the charger to be installed safely on pedestals in open areas where children may be playing nearby.
- Comprehensive Safety Focus: This hardware feature complements the software-based protections, creating a "zero-risk" environment for home charging.

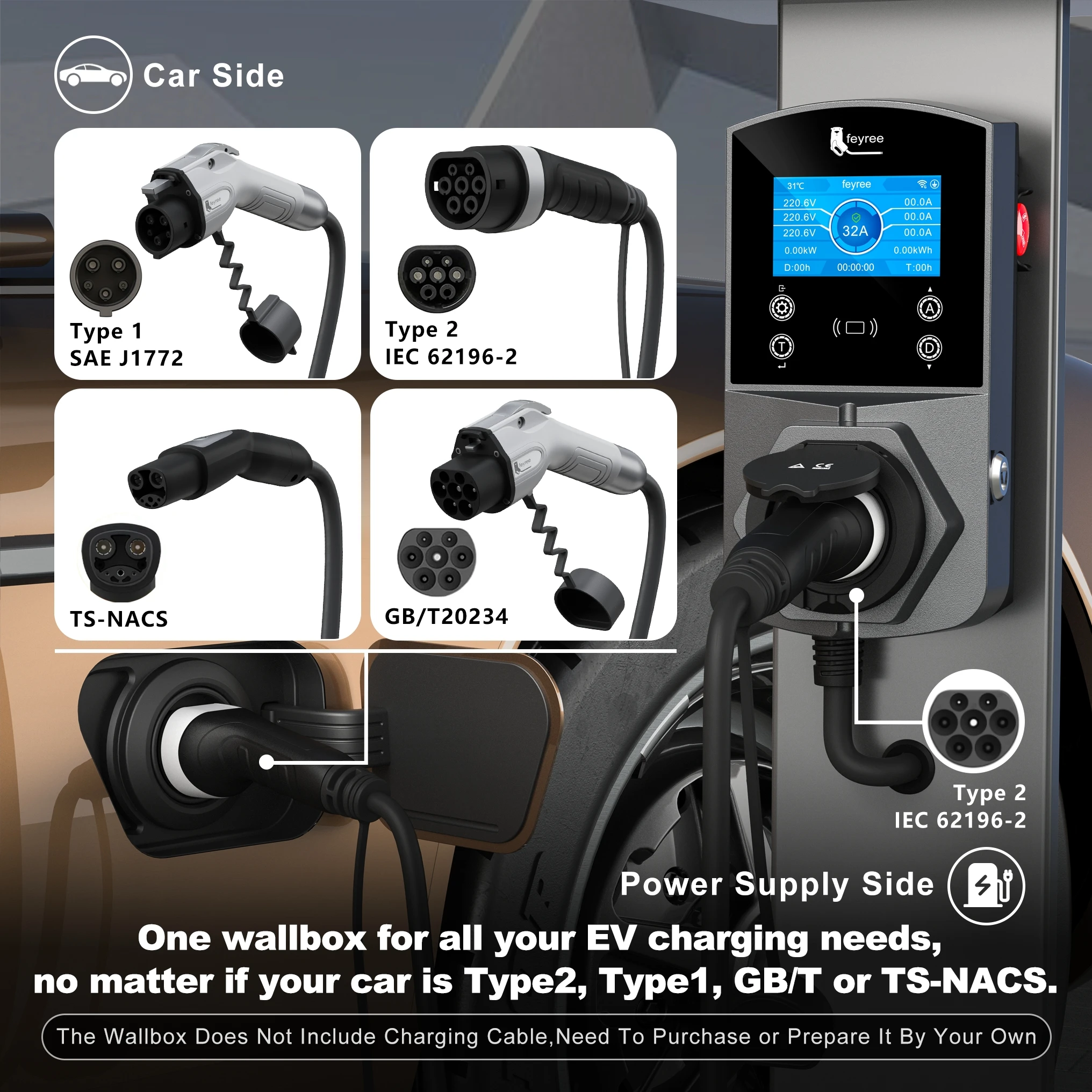

Universal Charging Solutions for Every Environment
This high-performance wall-box is designed to be the single cable solution for all your electric vehicle charging needs, regardless of location.
- Multi-Location Utility: The system is engineered for seamless use whether you are at home, at work, or traveling.
- Flexible Installation Options: The hardware can be mounted as a stationary wall unit for personal garages or installed on a pedestal post for open-air parking lots and commercial spaces.
- Unified Charging Cable: Designed as "one charging cable for all your charging needs," simplifying the user experience by eliminating the need for multiple different cables for different settings.
- Real-Time Monitoring: The integrated digital display on both the pedestal and wall-mounted configurations allows for immediate tracking of energy metrics while charging.
- Modern Aesthetic: The sleek, professional design ensures the unit complements a wide variety of modern electric vehicle models and architectural styles.
4 Charging Modes: Flexible & Intelligent Access
This charging station provides four distinct methods to start and manage charging sessions, catering to various home, office, and public usage scenarios.
- WIFI Through Mobile App: Allows users to remotely monitor status, adjust current, and start charging via a smartphone app over a WiFi network.
- BLUETOOTH Through Mobile App: Enables smart control and settings adjustments via Bluetooth when a WiFi connection is unavailable.
- RFID SCAN: Provides secure access using an RFID card; a simple swipe starts or stops the session, making it ideal for shared spaces or preventing unauthorized use.
- PLUG & CHARGE: Offers the most direct user experience by automatically initiating the charging process as soon as the connector is plugged into the vehicle.
Smart APP Management: Customization & Efficiency
The intelligent app ecosystem provides precise control over every charging session, allowing users to optimize performance and reduce costs.
-
7-Level Adjustable Current: Users can manually select the optimal charging speed from seven levels: 8A, 10A, 13A, 16A, 20A, 25A, and 32A.

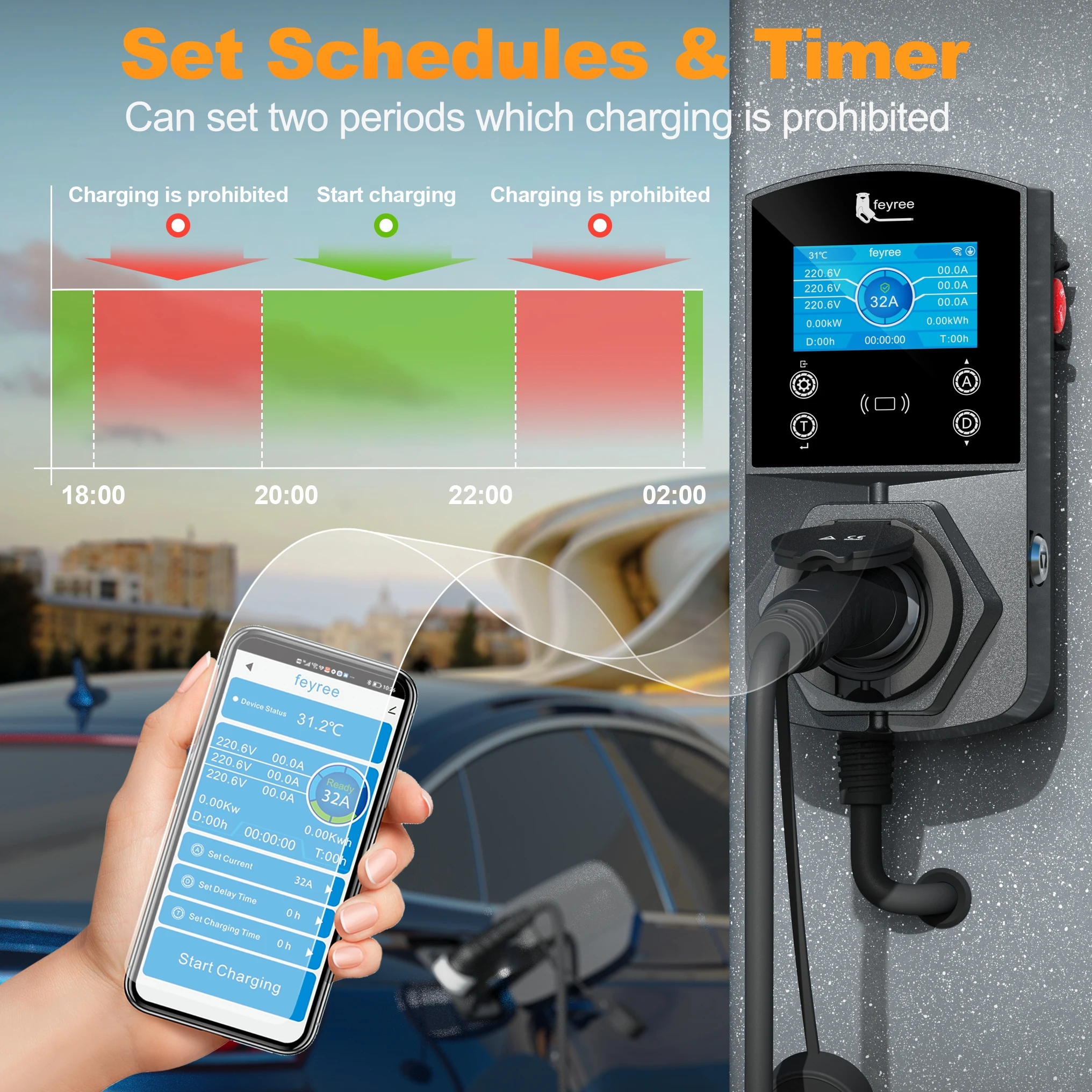

- Flexible Delay Charging: Features a programmable delay timer, allowing users to postpone the start of charging from 1 to 15 hours.
- Off-Peak Cost Optimization: Specifically designed to save money by scheduling charging during off-peak hours when electricity is cheaper (e.g., starting after 22:00) and stopping during expensive peak periods.
- Timed Duration Settings: Users can set the specific duration of the charging session, ranging from 1 to 15 hours, ensuring the vehicle receives exactly the amount of energy needed.

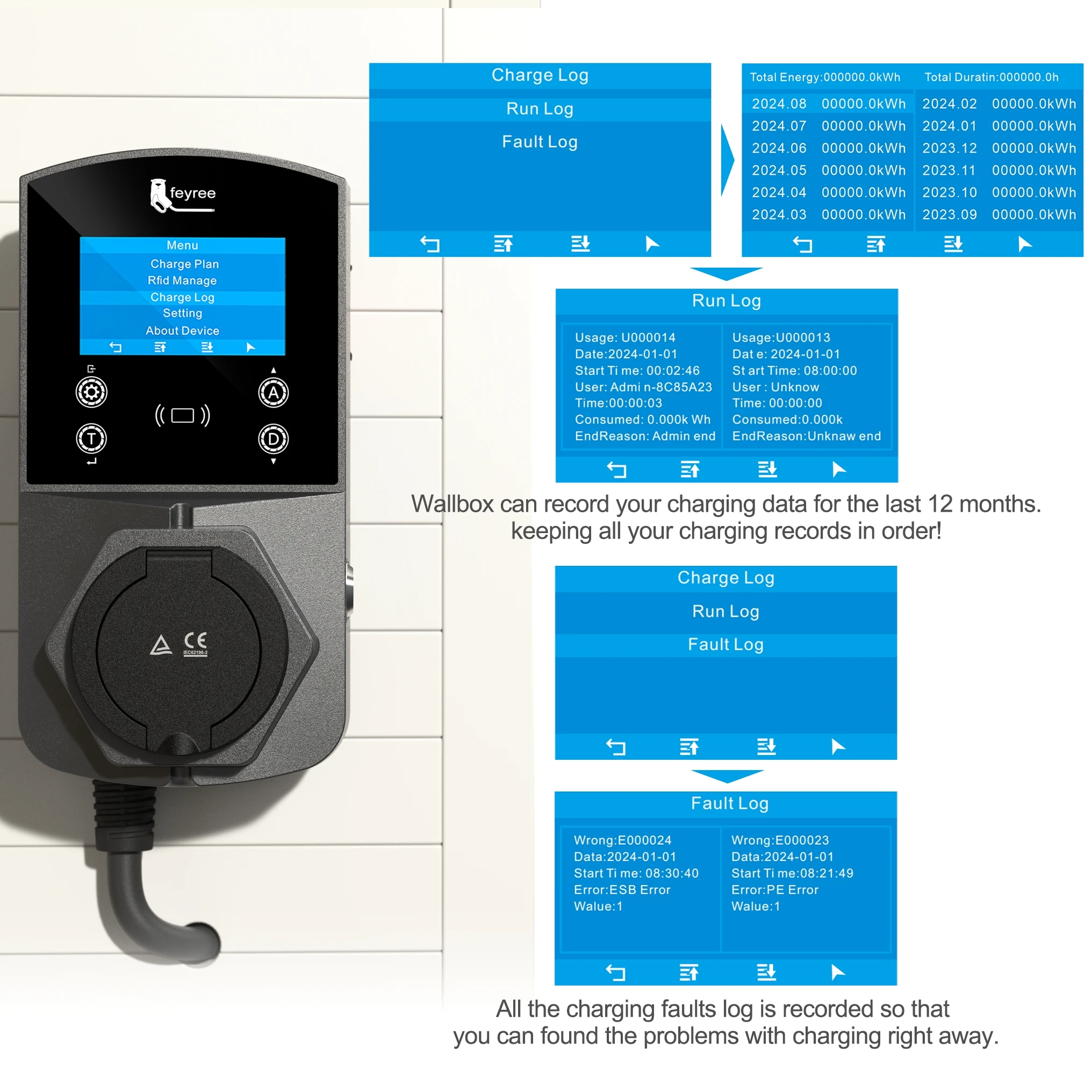

- Real-Time Data Dashboard: The mobile interface displays live metrics, including real-time voltage, current, and total energy delivered (kWh).
Intelligent Temperature Protection: Smart Thermal Management
The charging station features a precise thermal monitoring system designed to prevent overheating and ensure the safety of both the charger and the vehicle's battery.
- Automatic Safety Cut-off: If the internal temperature of the charger exceeds 85°C, the system will automatically stop the charging process to prevent any hardware damage or safety risks.
- Automatic Charging Recovery: Once the unit cools down and the temperature drops below 65°C, the charger will automatically resume the session, providing a seamless and worry-free experience.
- Real-time Thermal Monitoring: The system continuously tracks temperature fluctuations, as shown by the visual data curve, to maintain optimal operating conditions.
-
Enhanced Battery Protection: By managing heat levels, this intelligent protection helps extend the service life of the charging station and protects the electric vehicle's delicate battery cells from heat stress.
