Why choose an 11kW charger instead of a 7kW or 22kW for home use?

The feyree Lion King 11kW sits in a practical middle ground that suits the majority of EV owners. A 7kW single-phase charger works fine but adds roughly 35–40 miles of range per hour — meaning a nearly empty 60kWh battery takes over 8 hours to fill. A 22kW three-phase charger is faster, but the reality is that most EVs sold today have onboard chargers capped at 11kW, meaning 22kW hardware delivers no extra speed for those vehicles. At 11kW, you get a full charge on a 60kWh battery in 5–6 hours — typically overnight — while using three-phase power that's already available in most European homes and many properties globally.

Does the feyree Lion King 11kW stop automatically when my car is fully charged?

Yes. The charger automatically powers off once the vehicle's battery management system signals that charging is complete — no manual intervention needed and no risk of unnecessary energy draw afterward. You'll also receive a push notification via the Tuya app the moment charging finishes, so you know your car is ready even if you're already asleep or away from the garage. This makes it genuinely plug-in-and-forget for overnight charging routines.

How does the Bluetooth connection on the feyree Lion King 11kW work, and when would I use it?

The charger supports both Wi-Fi and Bluetooth simultaneously, and Bluetooth is particularly useful during the initial setup phase. When you first add the device to the Tuya app, Bluetooth allows your phone to communicate directly with the charger without needing a Wi-Fi connection at the charger's location — useful if your garage has a weak router signal. Once the Wi-Fi credentials are entered via Bluetooth, the charger connects to your home network for full remote access. Bluetooth also acts as a reliable fallback if Wi-Fi becomes temporarily unavailable.

What are the four current settings on the feyree Lion King 11kW, and how do I choose the right one?

The charger offers four selectable current levels: 8A, 10A, 13A, and 16A, corresponding to approximately 5.5kW, 6.9kW, 9kW, and 11kW output respectively. For most overnight charging sessions, 16A (11kW) is the best choice — fastest charge, longest cable and connector life at normal temperatures. Drop to 13A if your property's circuit breaker is shared with other heavy appliances running simultaneously. Use 8A or 10A for a deliberate slow charge — for example, when you only need a partial top-up and want to spread the load across several hours. Settings are changed either via the physical button on the unit or remotely through the app.

What does the temperature control chip in the feyree Lion King 11kW actually monitor?

The onboard master chip continuously tracks operating conditions throughout every charging session — including internal temperature, supply voltage, output current, and power draw. If any parameter moves outside safe operating limits, the chip responds in real time: reducing current to bring temperature down, tripping protection relays for voltage faults, or halting the session entirely and logging the event. This is distinct from simple hardware fuses or circuit breakers, which are passive. The active chip-based system catches gradual degradation — like a connector heating up slowly over a long session — before it becomes a critical fault.

Can I use the feyree Lion King 11kW without the app, and what controls are available on the unit itself?

Yes, the charger is fully self-contained for everyday use without a phone or app. The front panel features physical buttons for the three core functions: the Delay button sets a postponed start time for off-peak charging, the T button sets a maximum charging duration, and the A button cycles through the four current levels (8/10/13/16A) and saves your preferred setting to memory. The 2.8-inch LCD screen confirms your selections and shows live charging data — voltage, current, and power — in real time. To reset the Wi-Fi configuration, a long-press of the T button enters the settings menu directly on the device.

Is the feyree Lion King 11kW suitable for use in rain, and can it be left installed outdoors permanently?

Yes on both counts. The Type 2 connector carries an IP66 rating — fully sealed against dust ingress and powerful water jets from any direction — making it safe to leave plugged in during rainfall. The control box is designed for either portable use in a carry bag or permanent wall-mounting using the included bracket and fixings. The cable jacket is made from high-grade TPU, which resists UV degradation, remains flexible in cold weather, and withstands the repeated coiling and uncoiling that comes with daily use. It's engineered to live outdoors year-round, not just survive occasional damp.

Does the feyree Lion King 11kW work with Tesla vehicles, and are there compatibility differences by region?

Yes. The charger outputs via a standard Type 2 (IEC 62196-2) connector, which is natively compatible with all Tesla models sold in Europe (Model 3, Model Y, Model S, Model X) — no adapter needed. For North American Tesla models using the NACS connector, a Type 2 to NACS adapter is required and available as an optional add-on. Beyond Tesla, the charger works with any EV featuring a Type 2 port — including BMW, Volkswagen, Audi, Hyundai, Kia, Polestar, Volvo, BYD, MG, Renault, and most other current European and Chinese-market electric vehicles.

How much faster does a 22kW 3-phase charger charge compared to a standard 7kW home charger?

The feyree Hero 22kW three-phase charger is up to three times faster than a standard 7kW single-phase unit. At full 22kW output, it adds approximately 71 miles (114 km) of driving range for every hour of charging — meaning most EV batteries can go from low to full in under two hours. For drivers who previously relied on overnight 7kW charging, switching to this charger means a near-full battery is ready in the early evening, not first thing in the morning.

Can the feyree Hero 22kW charger be used as both a portable charger and a permanent home wallbox?

Yes — that's one of this product's most distinctive features. The charger ships with a wall-mount holder that lets you slide the control box vertically into a bracket fixed to your garage wall, creating a permanent wallbox-style installation. When you need to travel, you simply slide it out — no tools, no unscrewing — pack it into the included storage bag, and plug it into any CEE socket on the road. Most people don't need two separate charging units. This one covers both scenarios.

What is Type B leakage protection and why does the feyree Hero 22kW include it?

Type B leakage protection (AC 30mA + DC 6mA) is the most comprehensive level of residual current detection available for EV chargers. Unlike Type A protection — which only detects AC leakage — Type B also detects the DC fault currents that electric vehicle onboard chargers can generate. This matters because DC faults can bypass standard circuit breakers and go undetected. The feyree Hero includes this protection built into the charger itself, so even if your home's fuse board doesn't have a Type B RCD, you're fully protected.

Can I set a weekly charging schedule on the feyree Hero 22kW to automatically charge at off-peak times every night?

Yes, the Tuya / Smart Life app (free for iOS and Android) includes a full weekly charging planner. You set it once — like a recurring alarm clock — and the charger follows that schedule every week automatically, starting at whatever off-peak window saves you the most on your electricity tariff. For times when you don't have a phone signal or Wi-Fi at the charger, the physical 'D' button on the front panel lets you set a one-off delay of 1 to 15 hours directly on the unit, no app required.

What happens to the feyree Hero 22kW charger if my Wi-Fi goes down — can I still use it?

Completely. The charger operates fully offline when Wi-Fi is unavailable. All essential controls — current adjustment (A button), delay time (D button), and charging duration (T button) — are accessible directly via the capacitive touch buttons on the front panel. The LCD screen shows live charging data regardless of connectivity. Wi-Fi is purely additive for remote control and scheduling; losing the connection has no effect on the charger's core operation.

What is the ePTFE membrane in the feyree Hero 22kW and what does it actually do?

ePTFE stands for expanded polytetrafluoroethylene — it's the same waterproof-yet-breathable membrane technology used in high-performance outdoor gear. Inside the charger housing, it allows air to pass through while blocking water, which solves a problem common to sealed outdoor enclosures: internal pressure build-up caused by temperature cycling. When a charger heats up during a session and cools down afterward, pressure changes can force moisture through seals over time. The ePTFE membrane equalises that pressure passively, extending service life without compromising the IP66 waterproof rating.

How many charging sessions does the feyree Hero 22kW log, and what information is stored?

The charger stores up to 500 individual charging session records — accessible via the on-screen menu without needing the app. Each log entry includes the session date, total energy delivered (kWh), and charging duration. Through the Tuya app, you can also view aggregated energy consumption data across custom time periods, useful for tracking monthly electricity costs or submitting mileage records for work expense claims. The on-device log is persistent across power cycles, so no data is lost if the charger is unplugged.

What cable and connector materials are used in the feyree Hero 22kW, and why does it matter?

The charging cable uses 99.95% pure copper conductors — a significantly higher purity than the standard copper alloys used in most EV cables. Higher purity copper means less electrical resistance, which translates to less heat generated inside the cable at high current loads like 32A. The Type 2 connector pins are silver-plated, which maintains low contact resistance even after thousands of plug-in cycles — preventing the heat build-up at the contact point that causes premature connector wear. The outer cable jacket is TUV-certified TPU, flexible in sub-zero temperatures and rated for long-term outdoor exposure.

Hero – feyree factory

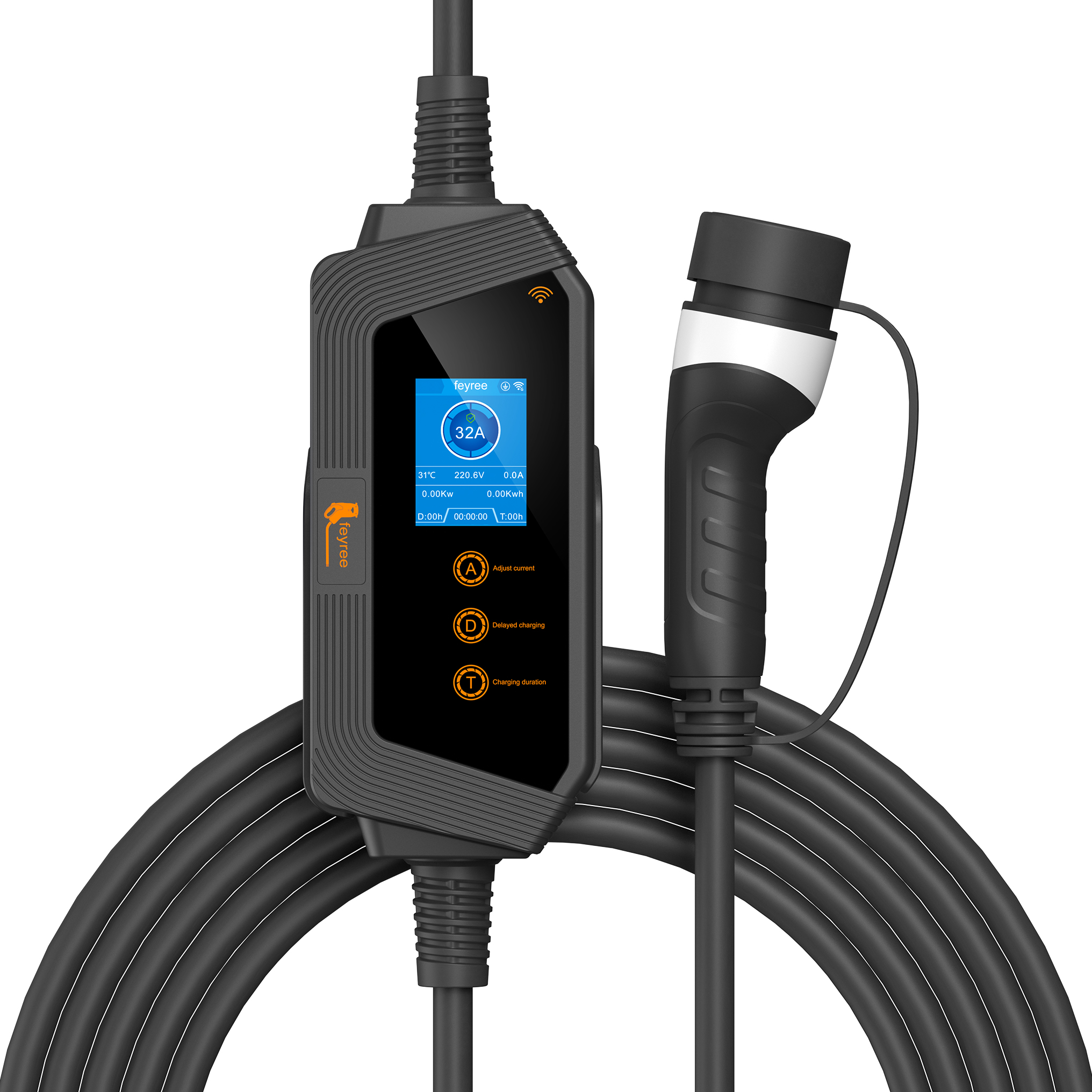

feyree Hero EV Charger: Smart APP WIFI 7/9.6/11/12/22kW - Portable Charging Box

Wallmount + Portable 2 in 1 Charger

2.8 inch Screen + Button Control

2.8" large LCD display could you show all real-time charging status. Setting Charging Time ("T" Button), Setting Delay Time ("D" Button) and Adjust Current before charging and Memory Charging ("A" Button).

Schedule Charging

Schedule charging during off-peak hours to slash your electricity bills

Smart APP Control

Built-in Wi-Fi Smart APP (enable Wi-Fi & Bluetooth for device pairing). Supports scheduled off-peak charging to cut electricity costs, adjustable charging current, full-charge notifications, and real-time charging status monitoring.

High Levels Protection

Leakage protection
Overvoltage or undervoltage protection
Overload protection
Lightning protection
Overheat protection
Ground protection

Download User Manual Down Load Product Specification

Long Service Life: The charger adopts ePTFE (Waterproof Breathable Membrane) materials, which can automatically minimize the damage of control box due to different temperature and air pressure difference between inside and outside of heat expansion and cold contraction. The thickness of the shell has reached 3.5mm,which has superior compressive strength.
Multi-function usage: with a charging box holder,can meet both portable and wall mounted installation needs.
Secure charging: Our chargers have safety protection measures such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection ( TypeB AC30mA + DC6mA ) , and overheating protection, with a waterproof grade of IP66.
High flame retardant material: The gun head,cable and shell are all made of high flame-retardant materials,which meet the UL94V-0 fire protection rating ,can effectively prevent fire hazards ensure safe charging.

Long Service Life: The charger adopts ePTFE (Waterproof Breathable Membrane) materials, which can automatically minimize the damage of control box due to different temperature and air pressure difference between inside and outside of heat expansion and cold contraction. The thickness of the shell has reached 3.5mm,which has superior compressive strength.
Multi-function usage: with a charging box holder,can meet both portable and wall mounted installation needs.
Secure charging: Our chargers have safety protection measures such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection ( TypeB AC30mA + DC6mA ) , and overheating protection, with a waterproof grade of IP66.
High flame retardant material: The gun head,cable and shell are all made of high flame-retardant materials,which meet the UL94V-0 fire protection rating ,can effectively prevent fire hazards ensure safe charging.

Feyree 22KW wall-mounted EV charger with storage bag, box holder, and Type 2 plug accessories.

22kW Smart EV Charger: Powerful, Portable & Wall-Mountable

The Feyree 22kW three-phase smart charging station combines maximum charging speed with everyday practicality — designed to work equally well as a permanent wall installation or a portable travel charger.

Three-phase 22kW output with Type 2 plug and CEE male power connector for wide vehicle and socket compatibility.
Capacitive touch buttons with a modern, science-and-technology-inspired design aesthetic.
Ships with a wall-mount holder, storage bag, and all mounting hardware — ready for both portable and fixed use out of the box.
Shell thickness reaches 3.5mm for superior compressive strength and long-term durability.
2-Year Warranty with dedicated 24/7 after-sales support team.

Split view of Feyree EV charger used for both portable travelling and fixed home charging.

Multi-Function Usage: Portable & Wall-Mounted in One

Thanks to the included charging box holder, this unit covers both use cases without needing two separate products — a practical and cost-effective choice for drivers who charge at multiple locations.

Portable mode: Carry the charger in the included storage bag for use at any CEE socket — ideal for travel, hotels, and public car parks.
Wall-mounted mode: Slide the control box into the holder and fix to the wall for a permanent, tidy home installation.
Switching between modes requires no tools — simply slide in or out of the holder bracket.
Storage bag is included and sized to fit the charger, cable, and accessories for hassle-free transport.

Infographic showing a 22KW Feyree EV charger delivering 71 miles of range per hour of charge.

Faster Charging Speed: Up to 71 Miles of Range Per Hour

At full 22kW three-phase output, this charger delivers one of the fastest AC home charging speeds available — dramatically reducing overnight charging time compared to standard 7kW single-phase units.

22kW three-phase output adds up to approximately 71 miles (114 km) of range for every hour of charging.
Up to 3× faster than a 7kW single-phase charger in the same charging window.
Adjustable current from 8A to 32A per phase — dial back to extend cable and socket life or match your vehicle's onboard charger limit.
Compatible with all Type 2 electric vehicles including Tesla (with adapter), BMW, Audi, Volkswagen, Volvo, and more.

IP66 waterproof EV charger, withstands −22°F to 131°F, durable for all-weather outdoor charging.

IP66 Outdoor Rated: Weatherproof in All Conditions

Certified IP66 for complete dust and water jet resistance, this charger is built to perform reliably in every climate — from freezing winter mornings to hot summer afternoons.

IP66 dust rating: fully sealed against particulate matter that could damage internal components.
IP66 water rating: withstands sustained direct water jets from any direction — rain-proof and hose-safe.
Operating temperature range: −30°C to +55°C (−22°F to 131°F) for year-round performance in any climate zone.
UV-resistant outer shell prevents fading, cracking, and brittleness from prolonged sun exposure.
High flame-retardant materials on the gun head, cable, and shell all meet UL94 V-0 fire protection rating.

Showcase of Feyree EV charger portability with storage bag and wall-mounted installation options.

Wall-Mount Holder: Vertical Slide-In Installation

The custom wall-mount holder is designed for effortless one-motion installation — simply slide the control box vertically into the bracket and it locks securely in place.

Holder mounts to any flat wall surface using the included screws and anchors — suitable for brick, concrete, and plasterboard.
Control box slides vertically into the holder for a secure, rattle-free fit without additional fasteners.
Compact dimensions (260mm × 113mm × 66mm with holder) fit neatly in garages and carports without dominating the wall.
Holder keeps the charger elevated and ventilated, extending service life by preventing ground moisture contact.

Smartphone app interface for remote monitoring Feyree EV charger status via Tuya and Smart Life.

Smart App Control via Tuya & Smart Life: Full Remote Access

The free Tuya Smart / Smart Life App (iOS & Android) gives you complete control over your charger from anywhere — turning your smartphone into a powerful charging management centre.

Start, stop, or pause charging sessions remotely at any time with an internet connection.
Monitor real-time charging current, voltage, and power output directly from the app home screen.
Adjust charging current remotely to match your vehicle's onboard charger limit or your home's available capacity.
Receive push notifications for charging start, session completion, and any fault alerts.
View historical charging data and energy consumption records for trend analysis and cost tracking.

Weekly Charging Planner & Bluetooth / Hotspot Access

Infographic showing Tuya app interface for scheduling weekly EV charging plans like an alarm clock.

Tuya app interface guide for setting automated weekly charging schedules.

Diagram of the charger's menu structure including charging plans, logs, settings, and device info.

Full Menu Structure: Every Setting, Clearly Organised

The charger's on-screen menu is logically structured into four main areas — so every setting, log, and configuration option is accessible within a few touch-button presses.

Charging Plan: Set delay start time, charging duration limit, and current level.
Charging Logs: Review up to 500 recent charging sessions including duration, kWh, and date.
Settings: Configure Wi-Fi, adjust current limits, set language, and enter advanced options.
Device Info: View firmware version, serial number, rated power, and real-time diagnostics.
All menu navigation uses the three capacitive touch buttons — no stylus or app required for on-device configuration.

Safety Certifications & Protection Detail

Graphic showing 10 safety protections including leakage, overvoltage, and short circuit protection.

Feyree industrial charging station with IP66 rating, waterproof, dustproof, and breathable design.

Diagram showing the Feyree EV charger control box sliding vertically into its custom wall-mounted holder.

Installation: Slide-In Wall Holder & Compact Dimensions

Wall installation is designed to be simple and tool-light — mount the bracket, slide in the charger, and connect the cable. The compact footprint keeps your garage wall clean and uncluttered.

Dimensions (with holder): 260mm height × 113mm width × 66mm depth — smaller than most rival wallboxes.
Control box slides vertically into the holder from the top — no screws required to secure the charger itself.
Holder bracket requires only 4 screws into the wall; all anchors and fixings are included in the box.
Suitable for brick, concrete, tiled, and standard plasterboard surfaces with the provided hardware.
Holder keeps the charger at an ergonomic height for easy cable connection and daily use.

Technical dimensions of the Feyree EV charger: 260mm height, 113mm width, and 66mm depth with the holder.

Compact Form Factor: Precise Dimensions for Easy Planning

Use these measurements to plan cable routing, wall clearances, and holder positioning before installation day — no surprises on site.

Height: 260mm — fits in most standard electrical cabinet bays and garage wall spaces.
Width: 113mm — narrower than a standard UK socket box, leaving ample wall space beside it.
Depth (with holder): 66mm — protrudes less than 7cm from the wall surface.
Cable exit point is located at the base for downward routing, keeping the installation tidy and reducing strain on connectors.
Weight: lightweight enough for a single person to mount without assistance.

Close-up of high-quality materials: pure copper cable, TPU insulation, silver-plated pins, and tin-free PCB.

Premium Cable Materials: 99.95% Pure Copper & Silver-Plated Pins

Every material in the charging cable and internal electronics is selected to exceed industry-standard specifications for efficiency, safety, and long-term durability.

99.95% pure copper conductor: Minimises resistive losses and heat generation — far above the purity of standard cables.
Silver-plated connector pins: Superior corrosion resistance and low contact resistance after thousands of mating cycles.
TUV-certified TPU outer jacket: Flexible in cold temperatures, UV-resistant, and rated for year-round outdoor use.
Tin-free PCB: Lead-free internal circuit board for environmentally responsible manufacturing.
ePTFE (waterproof breathable membrane) material automatically compensates for internal/external pressure differences caused by thermal expansion and contraction — extending service life significantly.

What's in the Box

Product bundle including Feyree EV charger, wall holder, storage bag, and a set of 7 mounting screws and anchors.

Portable EV charger with wall mount kit, carrying bag, Type 2 plug, and 16A adapter, free accessories included.

Complete package view featuring the Feyree EV charger, mounting kit, carrying bag, and a 16A power adapter.
